Mounting Kit

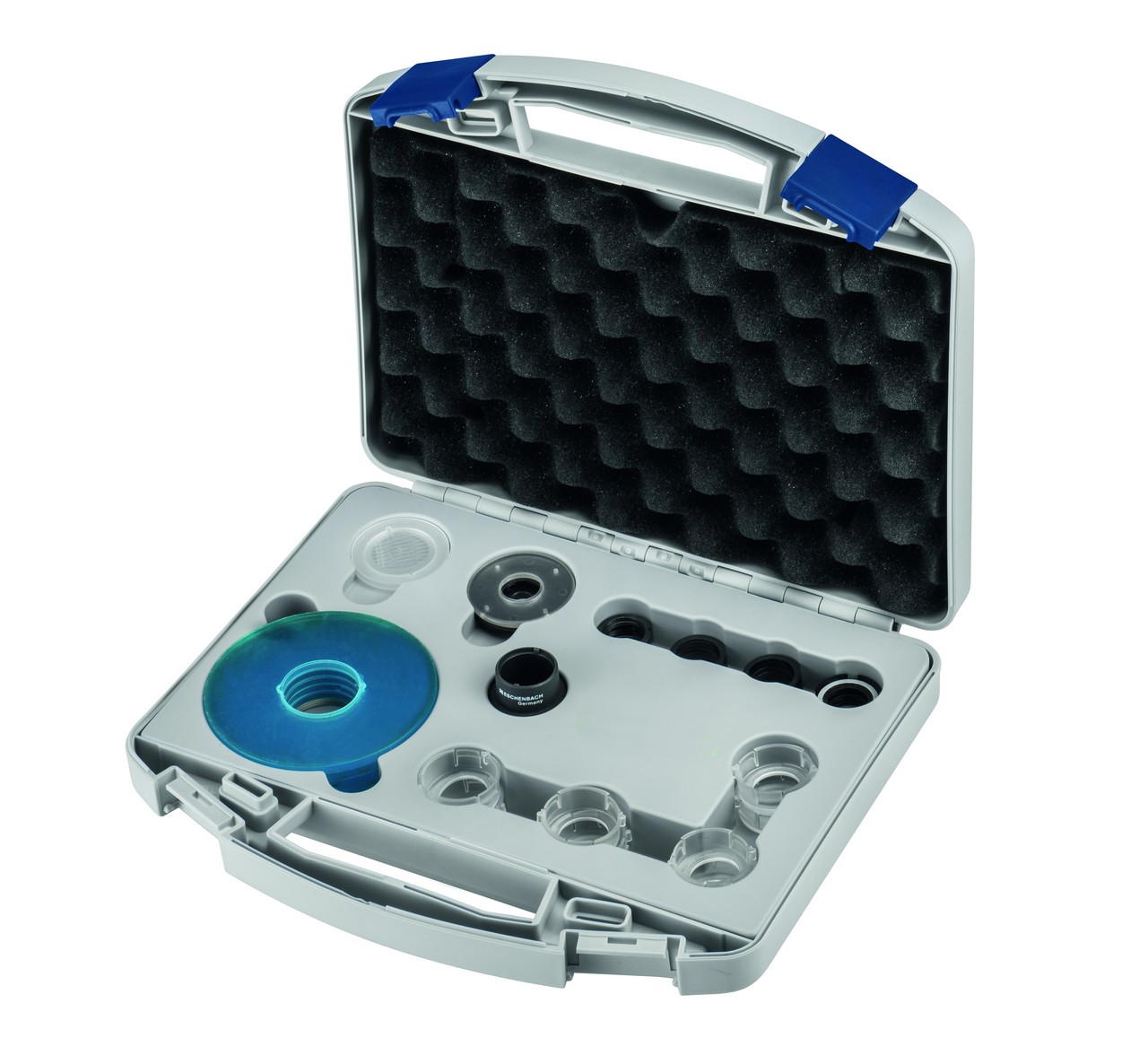

• The 1625 Mounting Kit enables all Eschenbach Optik telescopic systems, both Galilean and Keplerian, to be mounted into any special frame
• The main features of the 1625 Mounting Kit are the carrier lenses made from CR 39, together with the corresponding convergence adapters for working distances of 200 mm, 250 mm, 330 mm and an adapter for distance tasks
• The convergence adapters allow binocular use in the distance range, as well as in a variety of close-up ranges
• The mounting kit is suitable for monocular and binocular use in both the distance and close-up ranges
• If an adjustment error occurs (incorrectly determined visual centre) minimal expense is incurred as only the carrier disks need to be reground
Contents:
Quantity Item
1 Fitting brochure
6 Carrier disks
2 Centering inserts for grinding the carrier disks
2 Adapters for infinite distance use
2 Convergence adapters for 200 mm (binocular)
2 Convergence adapters for 250 mm (binocular)
2 Convergence adapters for 330 mm (binocular)
Small mounting components:
6 x Spacer washers (0.5 mm, 1.0 mm, 2.0 mm)
6 Lock rings for securing the monoculars
2 Holding rings with adhesive ring for the use of correction lenses
1 Lens former for correction lens
1 Socket
2 Adapters for trial frame
Order No. for reordering:
Order No. Quantity/Description
1619
2 Adapters for the trial frames
1622
2 Holding rings for the use of correction lenses
16221
1 Lens former for correction lens and
4 replacement adhesive rings
16261
2 Carrier lenses,
2 adapters for infinite distance use,
2 centering inserts
16262
2 Carrier lenses,
2 convergence adapters for 200 mm,
2 centering inserts
16263
2 Carrier lenses,
2 convergence adapters for 250 mm,
2 centering inserts
16264
2 Carrier lenses,
2 convergence adapters for 330 mm,
2 centering inserts
16265
6 Carrier lenses
16266
6 Adapters for infinite distance use
1627
Small mounting components, consisting of:
6 each of: spacer washes (0.5 mm, 1.0 mm, 2.0 mm),
6 lock rings,
2 Holding rings with adhesive ring for correction lens
1628
1 Mounting tool: socket
16715
6 Lock rings
